Firmament / 2020

The Firmament is the result of finding the shape of a self-supporting structure, purely with beam bars that transmit only compressive forces in the nodes.

The structure, resembling an eye in plan, serves as a pavilion that can be walked in a circle. Textile surfaces complete the wooden structure to form a canopy and behave in a wind-stable manner due to their double-curved manner.

A radial upward movement is represented by the rods arranged twice in a circle, facing the sky and supporting each other, symbolizing the simultaneity of infinity and evolution.

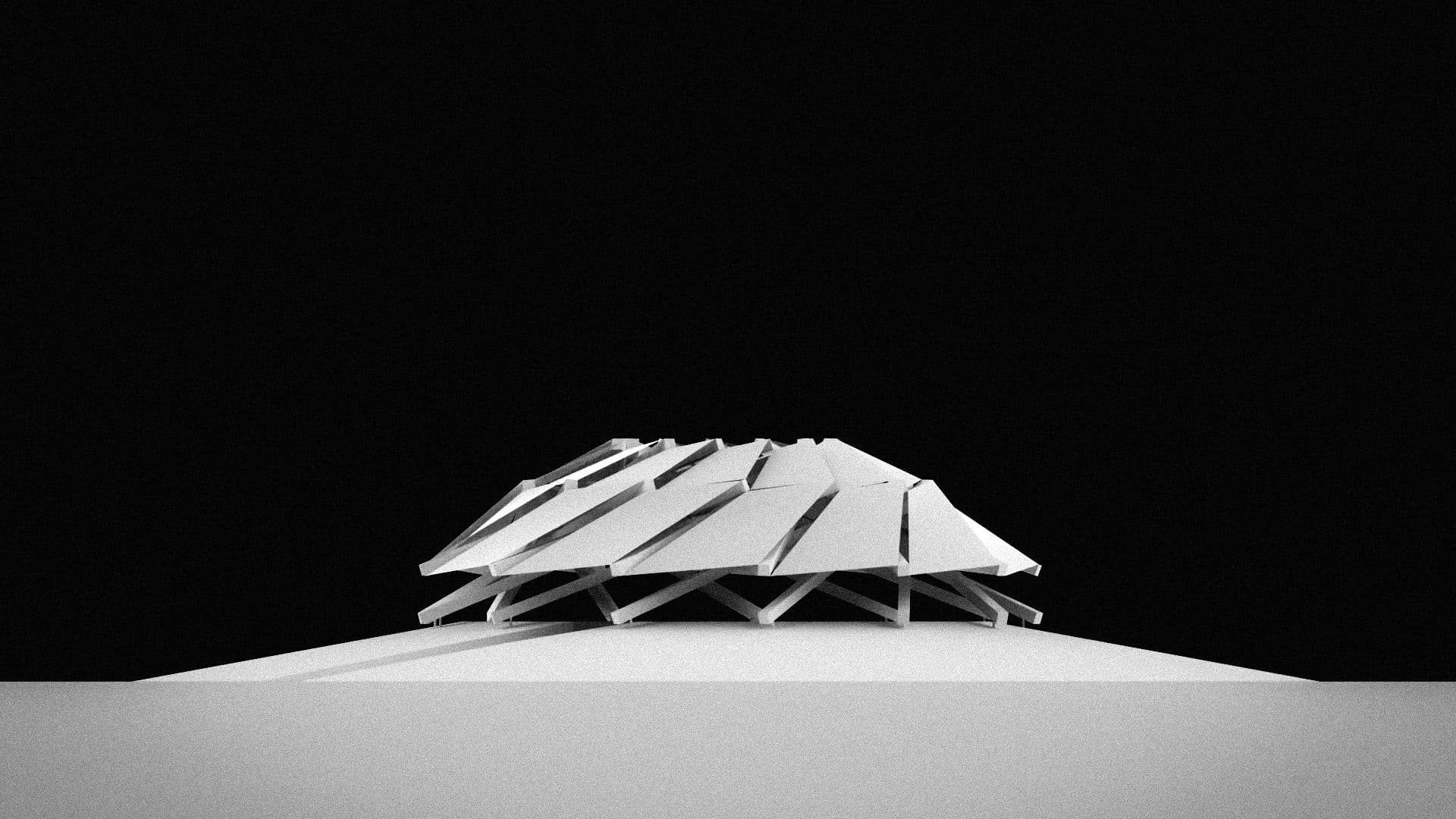

Firmament elevation
001
>
Elevation

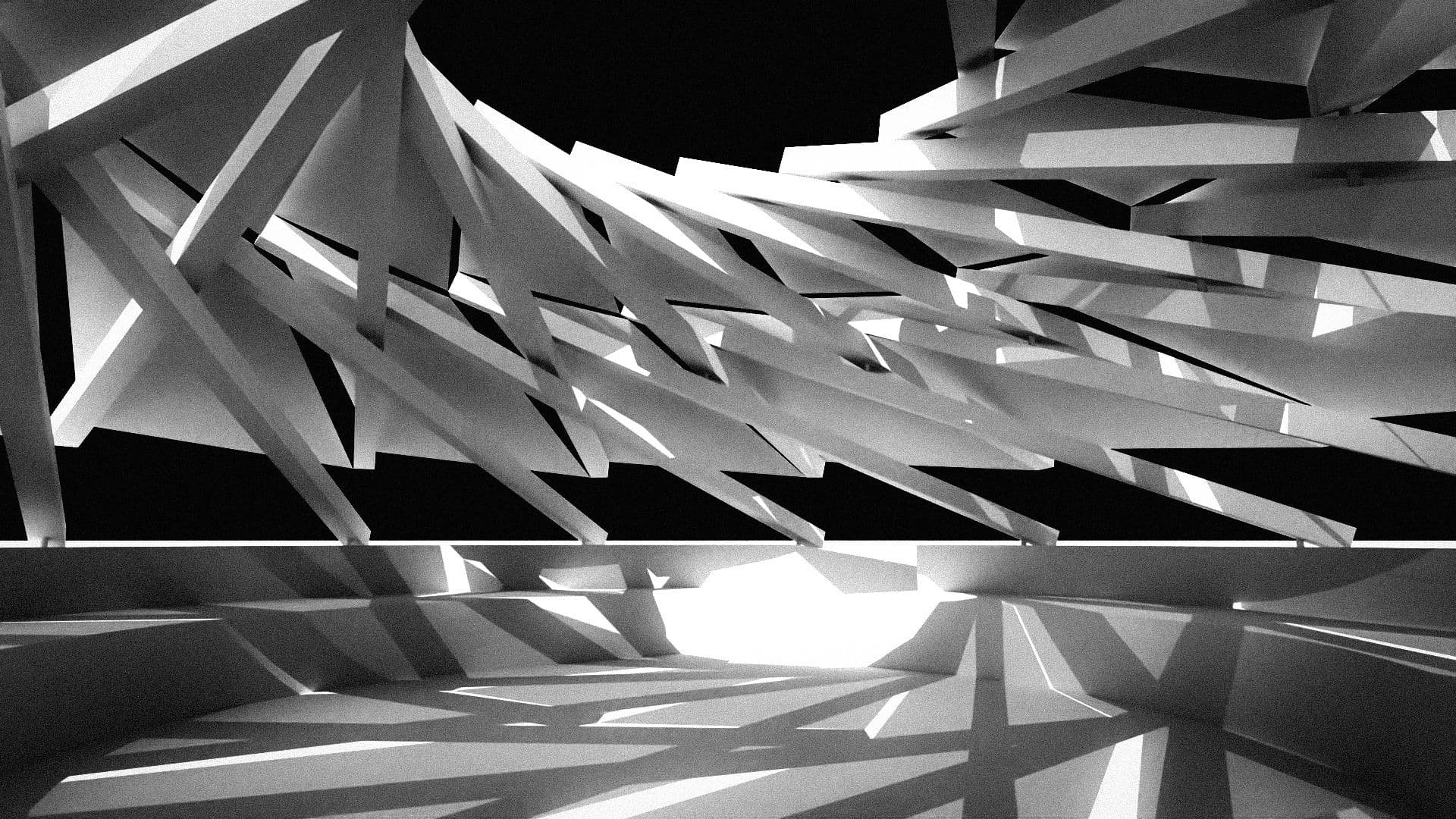

Firmament perspective inside
002
Firmament perspective outside
003

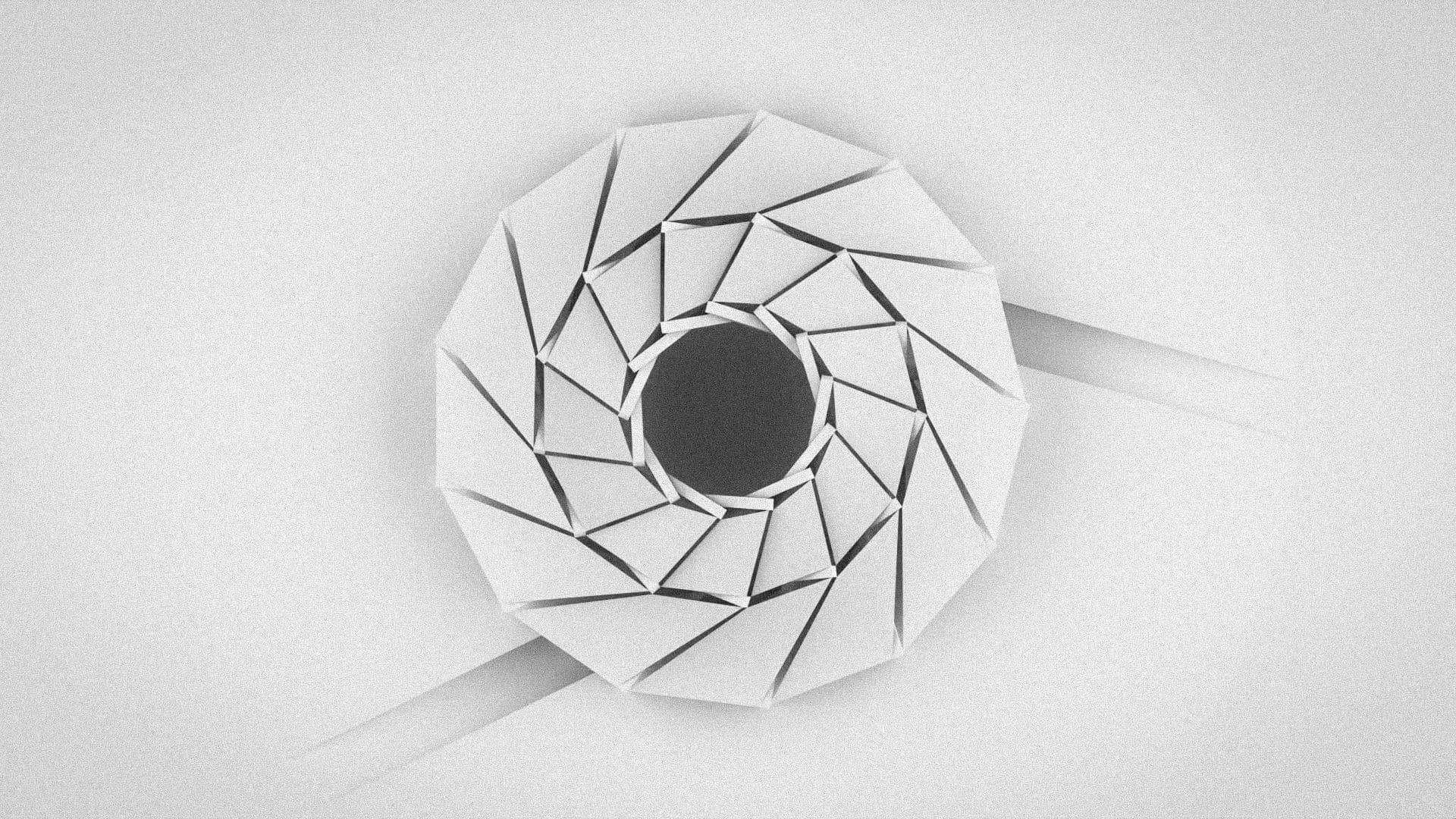

Firmament top view
004

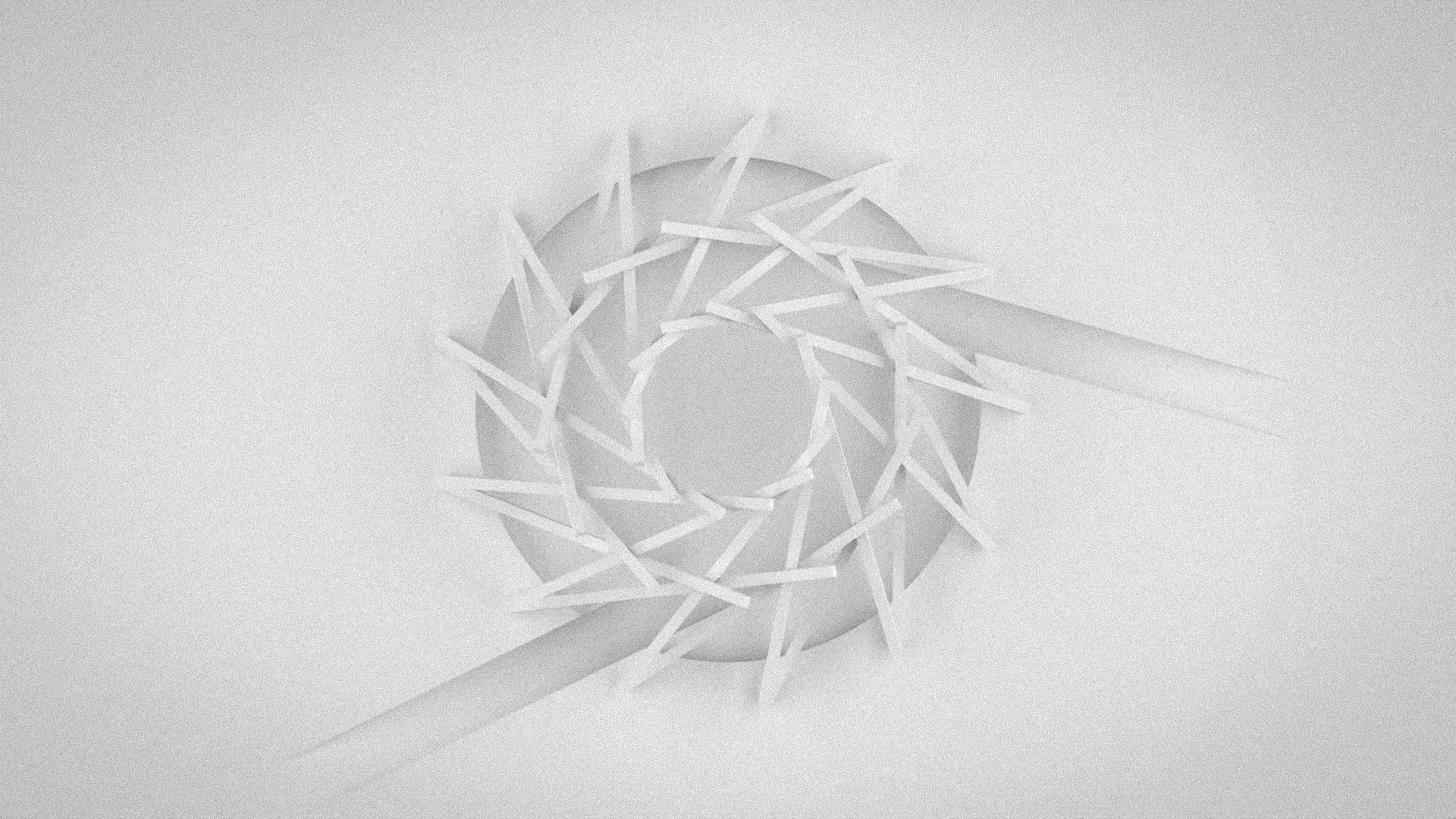

Firmament top view structure
005
>
structure

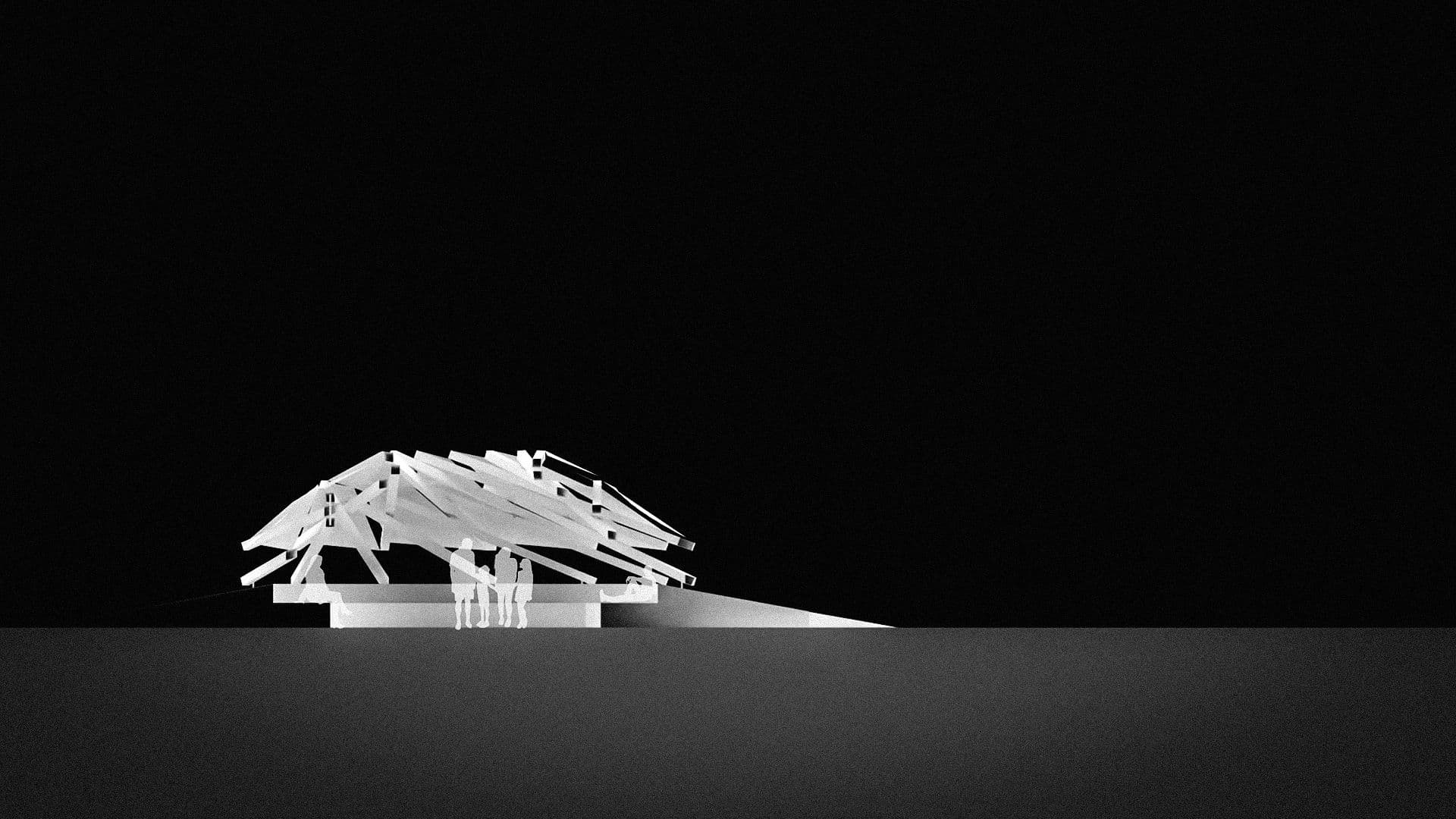

Firmament section with people
006
>
section

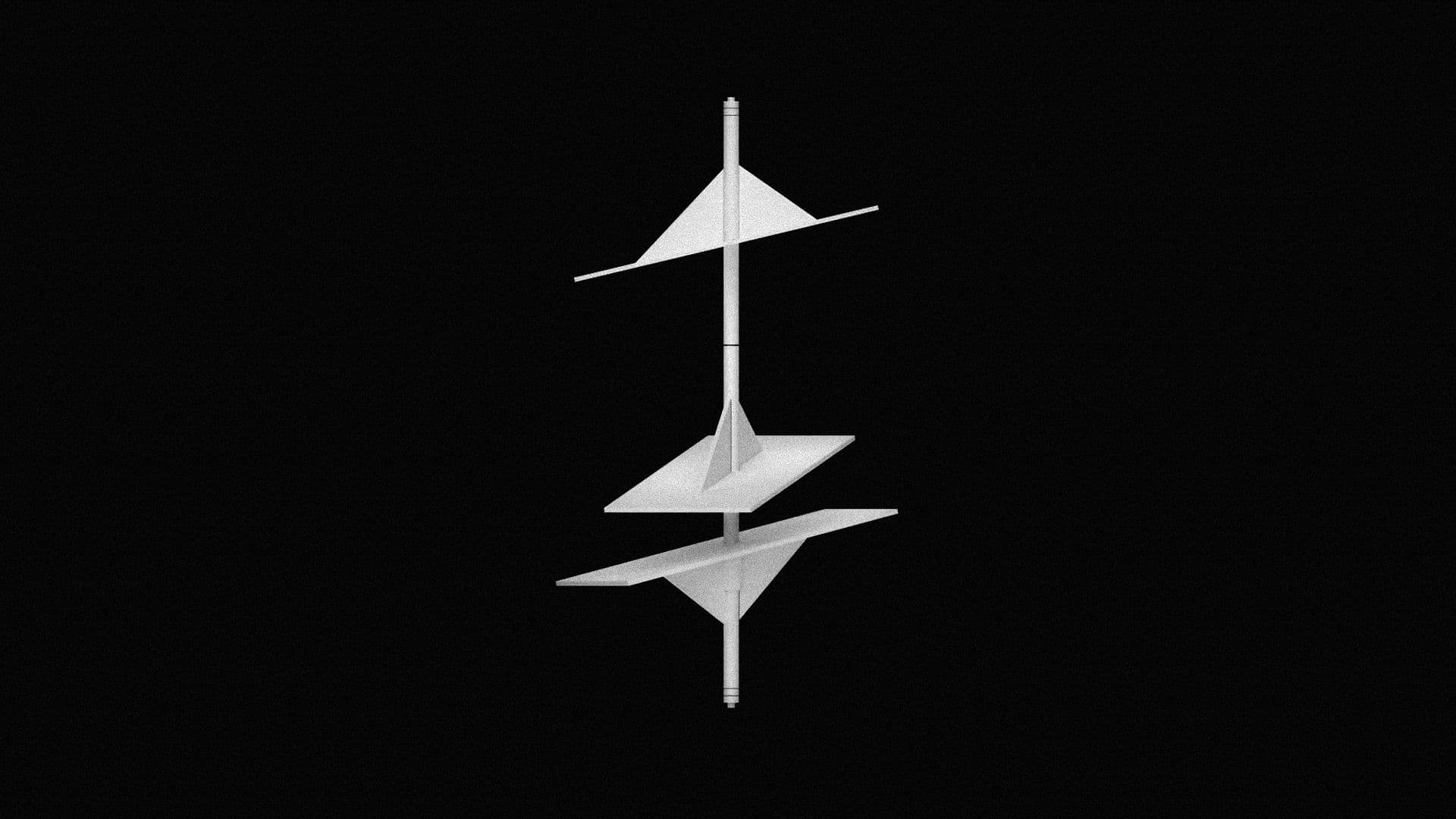

Firmament node whole
007
>
Node
Firmament node separated
008
>
node parted

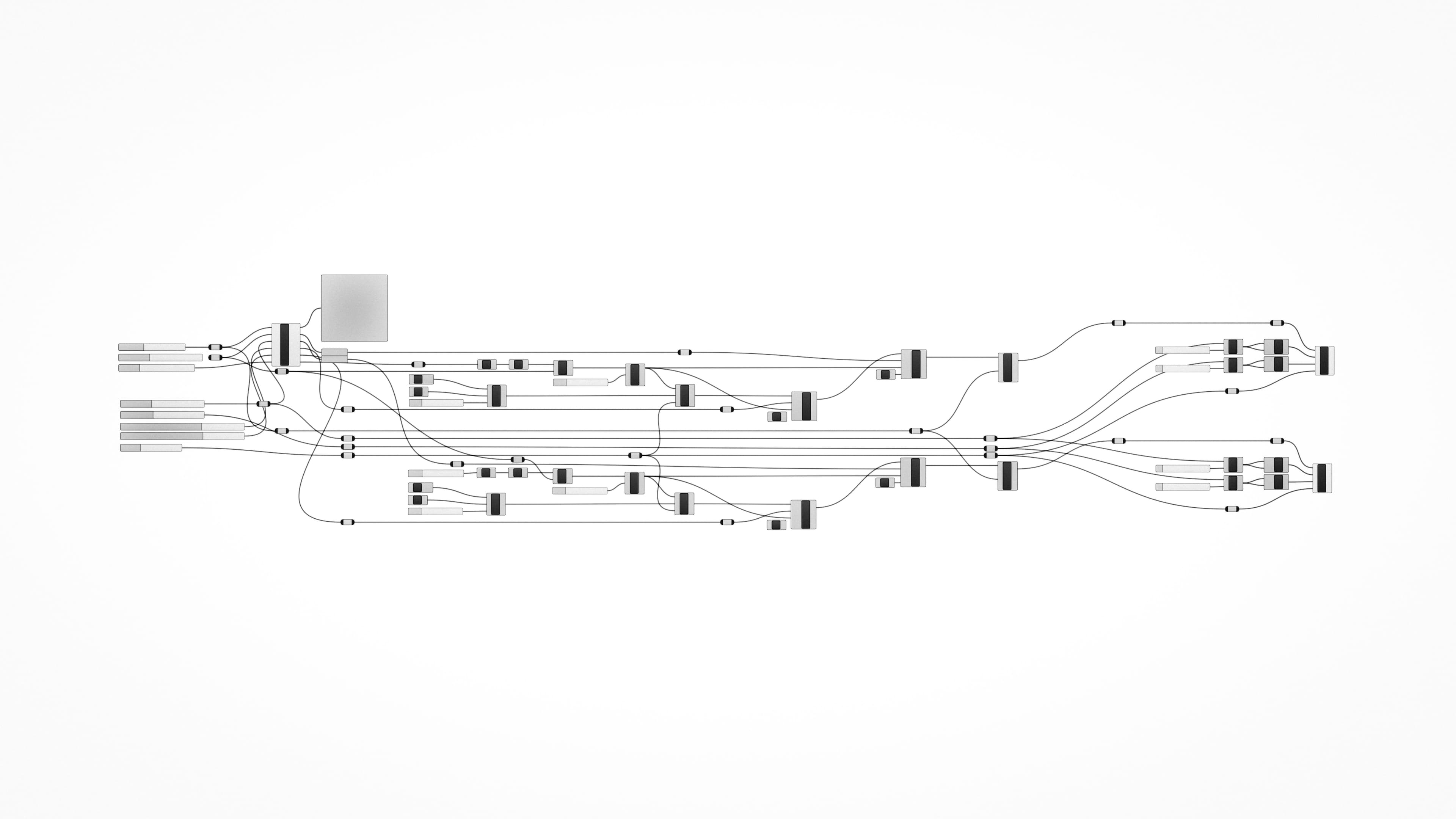

Firmament grasshopper node tree
009
>
grasshopper node tree
load plate test of a small scale model
010
>
load plate test of a small scale model — shortly after it cracked
